1.0mm2 Solid Copper Conductor Annealed 18 Awg Bare Copper Wire

Certification : CE

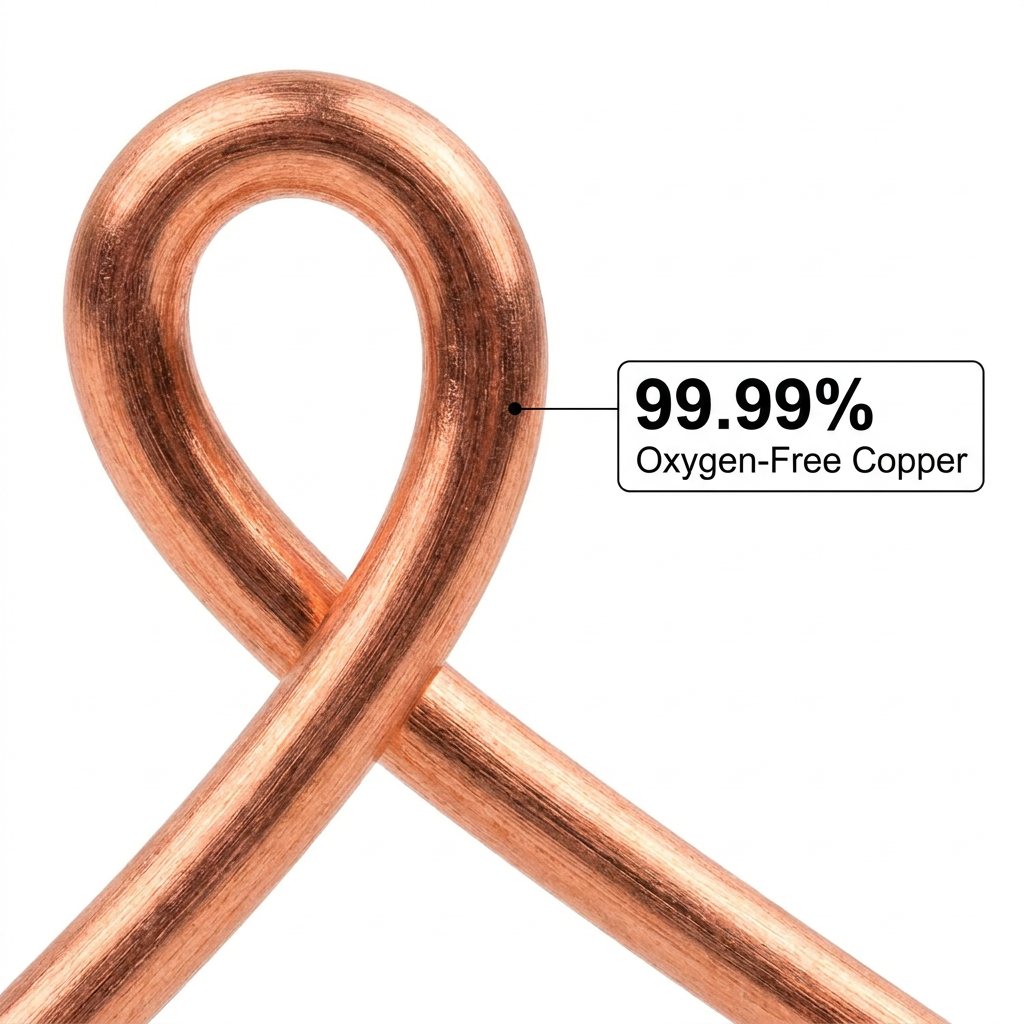

Copper Conductor : 99.99% Oxygen-free copper

Insulated : PVC

Place of Origin : China

MOQ : 100 meters

Color : Yellow

Cross Section : 1.0mm²

Model : Building Wire

Payment Terms : T/T,L/C

Delivery Time : Less than 15 days

Packaging Details : General Packaging or As Requirements

Voltage : 400V-750V

Brand Name : TD

Package : 100 meters per roll

Model Number : BV-1.0mm²

Rated Temperature : 0℃-70℃

Price : USD 0.13-0.16/Meter

Supply Ability : 100000 rolls per month

Specification : 1.0mm²/18 AWG

Contact Now

BV 1.0 mm² / 18 AWG — Technical Specification

Category	Parameter	Value / Description
Product Identity	Model Number	BV (equivalent to 60227 IEC 01 / IEC 05)
	Product Name	Copper Conductor PVC Insulated Single-Core Building Wire
	Standards Compliance	GB/T 5023.3-2008, JB/T 8734.2-2016
	Certification	CCC (China Compulsory Certification)
	Brand / Origin	TD / Anhui, China
Ratings	Rated Voltage (U₀/U)	450/750 V
	Temperature Rating	70 °C maximum continuous operating temperature
	Minimum Installation Temp.	0 °C (recommended; some compounds allow −15 °C)
	Short-Circuit Temp. (max 5s)	160 °C
Conductor	Nominal Cross-Section	1.0 mm²
	AWG Equivalent	18 AWG (approx. 0.823 mm² — not a 1:1 match)
	Conductor Material	Annealed Copper (Class 1 or Class 2)
	Conductor Type	Solid (Class 1) — or 7-strand flexible (Class 2) on request
	Conductor Diameter (solid)	1.13 mm (nominal)
	20 °C DC Resistance (max)	≤ 18.1 Ω/km (Class 1 solid)
Insulation	Insulation Material	PVC (Polyvinyl Chloride), Type V-75 or V-70
	Insulation Thickness (nominal)	0.6 mm
	Insulation Color Options	Red, Black, Blue, Yellow/Green, White, Brown, Grey, Orange
Dimensions	Average Overall Diameter (max)	2.8 mm
	Approx. Weight	~13–15 kg/km
Electrical Performance	Withstand Voltage Test	2000 V AC, 5 min, no breakdown
	Insulation Resistance (70 °C, min)	≥ 0.010 MΩ·km
Current-Carrying Capacity	In Free Air (single cable, 30 °C ambient)	~14–15 A
	In Conduit / Enclosed (30 °C ambient)	~11 A
	UL/NEC 18 AWG Reference (THHN/THWN-2)	14 A @ 60 °C / 15 A @ 75 °C (for comparison only)
Mechanical & Safety	Flame Retardant Grade	Passes GB/T 18380.1 (single vertical)
	IP Level	IP20 (bare wire — protection depends on conduit/trunking)
	Bending Radius (min)	≥ 4 × overall diameter (~11 mm)
	Smoke & Toxicity	Standard PVC — not low-smoke, not halogen-free
Application	Primary Use	Indoor fixed wiring, lighting circuits, socket circuits, control panels
	Typical Installation	Conduit, trunking, behind drywall, switchgear internal wiring
	Suitable Environments	Residential, commercial, light industrial (dry or damp, not wet)
	Not Suitable For	Direct burial, outdoor exposure, fire-rated emergency circuits
Cross-Reference	If Fire-Resistant Needed	Use NH-BV (fire-resistant PVC)
	If LSZH Needed	Use WDZ-BYJ or WDZBN-BYJ (XLPE, halogen-free)
	If Flexible Needed	Use BVR 1.0 mm² (Class 5 stranded)

1.0mm2 Solid Copper Conductor Annealed 18 Awg Bare Copper Wire

Performance Highlights

Electrical Performance

Rated Voltage 450/750 V — Suitable for 220/380 V single-phase and three-phase distribution systems, as well as low-voltage control and signaling circuits.
Low Conductor Resistance — Maximum DC resistance at 20 °C of ≤ 18.1 Ω/km, ensuring minimal voltage drop and efficient power transmission over typical building run lengths.
Excellent Dielectric Strength — Withstands 2000 V AC for 5 minutes without breakdown, providing a robust safety margin above normal operating voltage.
Stable Insulation Resistance — Maintains a minimum insulation resistance of ≥ 0.010 MΩ·km at 70 °C, preventing leakage current even under sustained load conditions.

1.0mm2 Solid Copper Conductor Annealed 18 Awg Bare Copper Wire

Thermal & Current-Carrying Capability

70 °C Continuous Operating Temperature — The PVC insulation is formulated for long-term thermal stability at 70 °C ambient-rated service, with a short-circuit withstand capability of up to 160 °C for 5 seconds.
Reliable Ampacity — Delivers approximately 14–15 A in free air and ~11 A when installed in conduit (30 °C ambient), making it ideal for lighting branch circuits, small appliance outlets, and control wiring.
Controlled Thermal Aging — The PVC compound exhibits low thermal deformation and high resistance to embrittlement over decades of service life.

1.0mm2 Solid Copper Conductor Annealed 18 Awg Bare Copper Wire

Mechanical Durability

Solid Copper Conductor (Class 1) — 1.13 mm diameter annealed copper rod delivers high tensile strength and dimensional stability. The solid construction resists stretching during pulling and maintains secure terminations under screw-clamp connections.
Uniform Insulation Extrusion — 0.6 mm nominal PVC wall thickness is applied via precision extrusion, producing a smooth, concentric profile with an average overall diameter not exceeding 2.8 mm — compact enough for dense conduit fills.
Good Flexibility for Installation — While solid, the 1.0 mm² gauge offers manageable bending characteristics with a minimum bend radius of 4× diameter (~11 mm), suitable for standard conduit bends and panel routing.
Abrasion & Impact Resistance — The PVC jacket provides effective protection against minor mechanical abrasion, crushing, and impact when installed in conduit or trunking.

1.0mm2 Solid Copper Conductor Annealed 18 Awg Bare Copper Wire

Safety Characteristics

Flame Retardant — Passes GB/T 18380.1 single-cable vertical flame test, self-extinguishing once the ignition source is removed, limiting flame spread along the cable length.
Electrical Isolation — High-quality PVC formulation ensures consistent dielectric properties, protecting against accidental contact and short circuits.
Color-Coded Identification — Available in Red, Black, Blue, Yellow/Green (earth), White, Brown, Grey, and Orange for intuitive phase, neutral, and protective conductor identification per regional wiring codes.

1.0mm2 Solid Copper Conductor Annealed 18 Awg Bare Copper Wire

Environmental & Chemical Resistance

Moisture Tolerance — Suitable for dry to damp locations (not wet or submerged). Performs reliably in typical indoor humidity conditions.
Chemical Stability — Resistant to common household and industrial chemicals including mild acids, alkalis, oils, and solvents at ambient temperatures.
UV Limitation — Not rated for prolonged direct sunlight exposure; outdoor or rooftop runs require UV-protective conduit or raceway.
Service Life — Expected service life of 25+ years under normal indoor installation conditions with proper derating.

1.0mm2 Solid Copper Conductor Annealed 18 Awg Bare Copper Wire

Installation & Handling

Aspect	Recommendation
Installation Method	Conduit, trunking, cable tray (covered), behind drywall, inside switchgear & distribution boards
Termination	Screw terminals, push-in connectors, crimp lugs (strip insulation 8–10 mm)
Pulling Tension (max)	≤ 50 N (avoid sharp bends during pull)
Minimum Install Temp.	0 °C (below 0 °C, warm wire or use cold-flexible compound)
Storage	Cool, dry location; avoid direct sun and stacking heavier reels on top
Reel Lengths	Typically 100 m, 200 m, 500 m (custom lengths available)

Color Selection

Application Scope

Primary Applications:

Residential lighting and small-power circuits
Commercial office fit-out wiring (switches, sockets, controls)
Internal wiring of distribution boards, consumer units, and switchgear
Control panel interconnections and instrumentation loops
HVAC control circuits and thermostat wiring

1.0mm2 Solid Copper Conductor Annealed 18 Awg Bare Copper Wire

Typical Projects:

Apartment buildings, villas, and townhouses
Schools, retail stores, and restaurants
Light industrial workshops and warehouses
Renovation and retrofit of legacy electrical installations

1.0mm2 Solid Copper Conductor Annealed 18 Awg Bare Copper Wire

Product Selection Guide

If your project requires…	Recommended alternative
Fire-resistant circuit integrity (emergency lighting, fire pumps)	NH-BV or WDZBN-BYJ
Low-smoke, zero-halogen for public occupancy buildings	WDZ-BYJ or WDZBN-BYJ
90 °C operating temperature	BYJ (XLPE insulated)
Flexible stranded conductor for vibration/tight bends	BVR 1.0 mm² (Class 5)
Direct burial or outdoor exposed run	Use armored cable or UV-rated jacketed type

Quality Assurance

Every production batch undergoes in-process and final inspection covering:

Conductor resistance measurement
Insulation thickness and concentricity verification
High-voltage withstand test (spark test or immersion)
Flame retardancy sampling
Dimensional and visual inspection

Test reports and Certificate of Compliance (CoC) are available upon request, referencing batch number and manufacturing date.

Summary

The BV 1.0 mm² / 18 AWG building wire represents the industry-standard choice for general-purpose fixed electrical wiring where cost-effectiveness, proven safety, and regulatory compliance are priorities. It combines a low-resistance solid copper core with durable PVC insulation to deliver stable, maintenance-free performance across the full service life of a building's electrical infrastructure. For projects demanding enhanced fire safety, low-smoke, or higher temperature ratings, the same manufacturer offers direct upgrade paths within the WDZ, NH, and BYJ product families.
